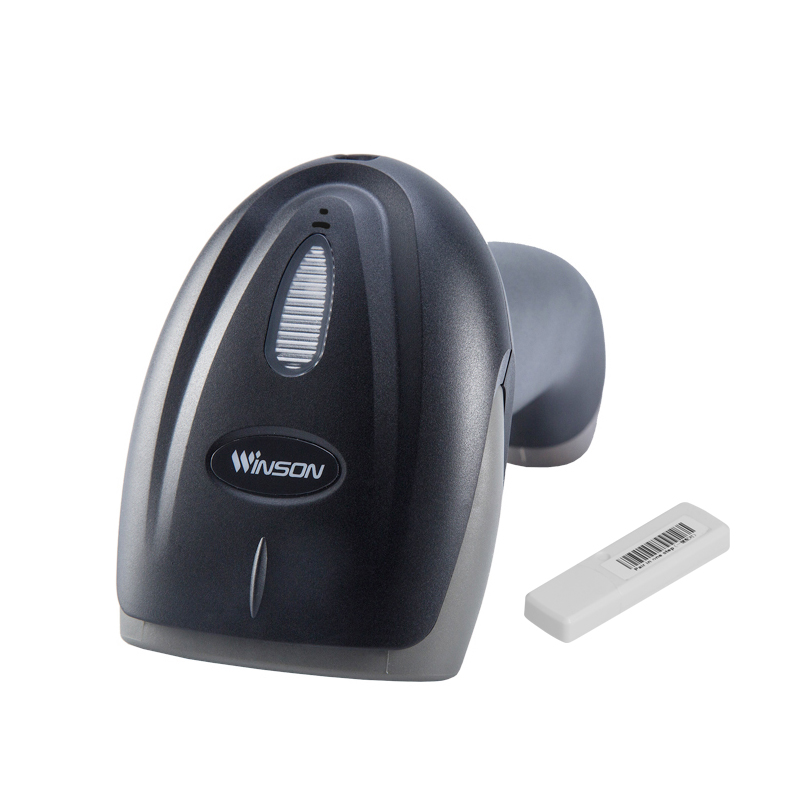

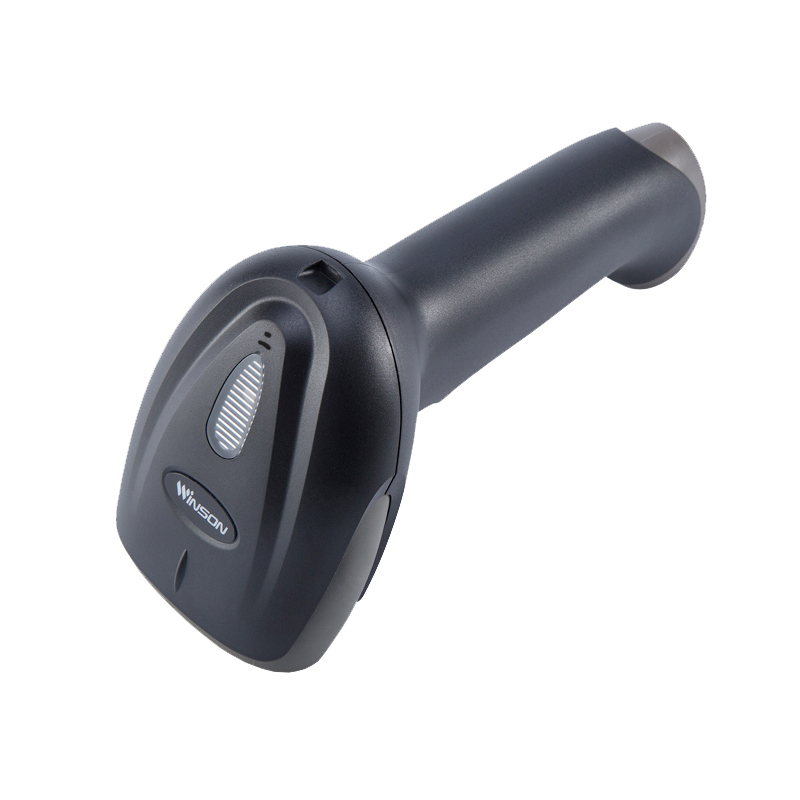

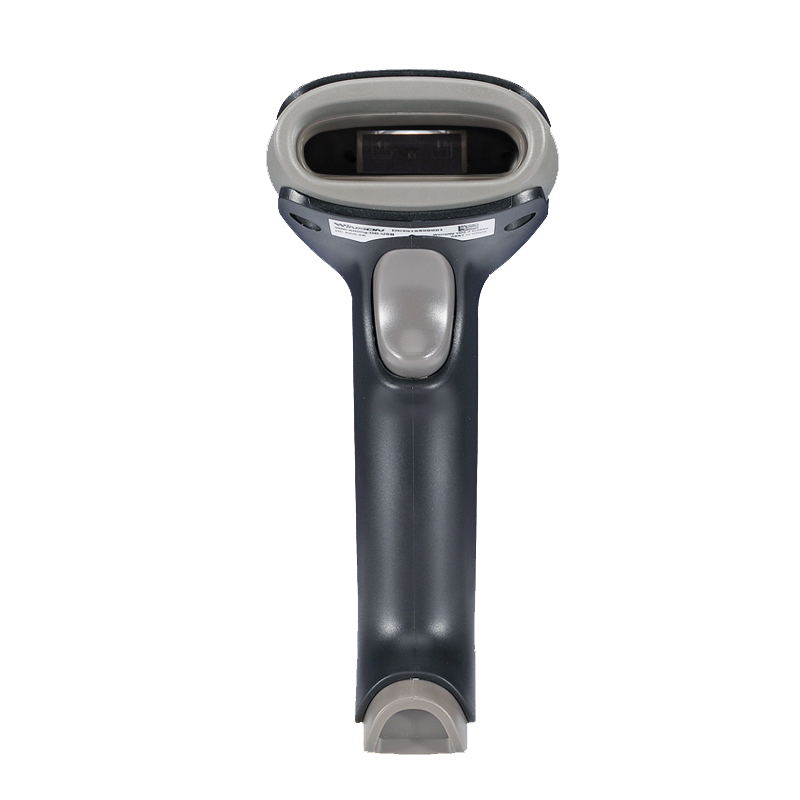

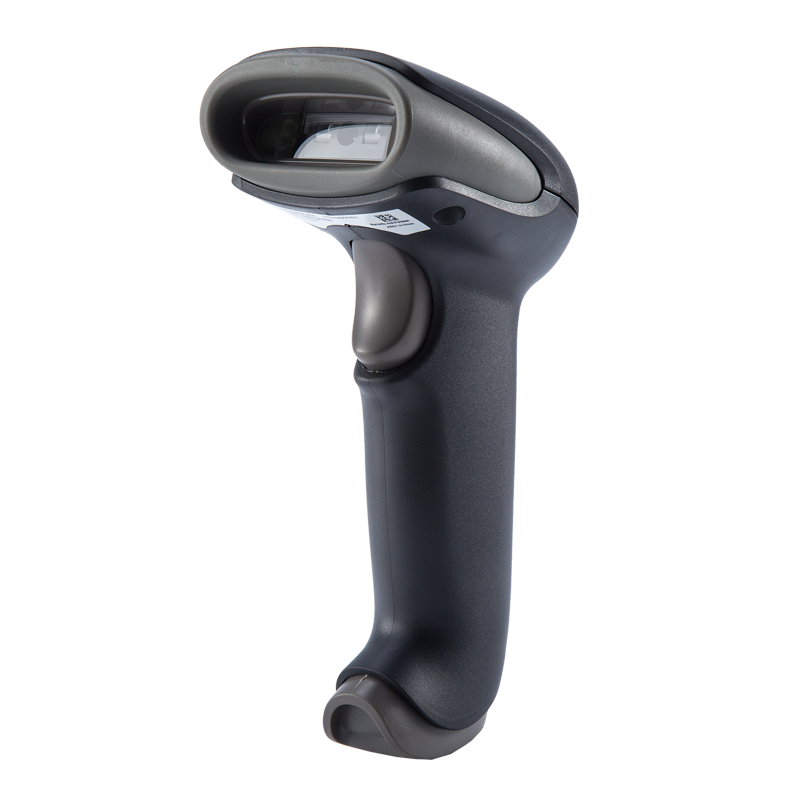

1D Wired USB Scanner Handheld Barcode Scanner Applied in Supermarket Warehouses Medical

Артикул: CN-SCAN-023

Краткое описание

1D Wired USB Scanner Handheld Barcode Scanner Applied in Supermarket Warehouses Medical 2 Colors available: (1) black+grey (2) white+grey RF433 wireless transmission The transmission range up to 100 meters (In empty area). Superior reading performance 32-bit CPU, scanning code speed up to 360 scans per second. 2000 mA…

model numberWNC-6082/V

MOQ1

CategoryScanners

UnitUnit

Перейти в подробное описание

Характеристики

model numberWNC-6082/V

MOQ1

CategoryScanners

UnitUnit

2 Colors available(1) black+grey (2) white+grey

Max120mA

Pitch angle±30° Skew angle:±75° Tilt angle:±45°

Receiver67mm*25mm*11mm(L*W*H)

Scanner172g

Received16g

Communications2.4GHz

Communication frequency2.402 to 2.480GHz Adaptive frequency hopping

Transmission range≤50M(In empty area 50M )

Data rate1Mbps

Battery capacity1500mAh (Lithium battery)

Charging time4.5H

The life time of the full charge4h(continuous reading situation) 9.5h(Manual reading situation) More than 15 days(Stand-by time)

Communication modeRead-time mode/Inventory mode/Cache mode

InterfaceUSB HID KEYBOARD(Wireless receiver)

Voltage requirementDC 5V±10%

Current consumptionMax:120mA

Photo sensorCCD linear sensor

Sensor Resolution2500pix

Light source632nm red led

Scan Rate350±50 (scans/second)

Decode anglePitch angle:±30° Skew angle:±75° Tilt angle:±45°

CurvatureR≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9)

Min resolution0.115mm/4.5mil(PCS 0.9)

Min .PCS value>20%UPC/EAN 13(13mil)

LanguageMultiple languages

IdentificationEAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93, INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST

DimensionsScanner70mm*95mm*168mm(L*W*H) Receiver:67mm*25mm*11mm(L*W*H)

WeightScanner:172g Received:16g

Temp-20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22° -158°F(storage)

Humidity5 - 90% (operation) ) 5 - 90% (storage)

Ambient Light:Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Shock drop test1.5m drop onto concrete surface

Electrical SafetyUL 60950,EN/IEC 60950

EMI/RFIFCC Part 15 Class B,EN 55024/CISPR 22

EnvironmentalRoHS

Напряжение5V

Вес172g

Вес16g

Цвета(1) black+grey (2) white+grey

Диапазон передачи100m

Скорость сканирования360 scans/second

Ёмкость батареи2000mAh

Время работы батареи12h

Максимальный угол наклона±30°

Максимальный угол перекоса±75°

Максимальный угол поворота±45°

Максимальная нагрузка120mA

Разрешение датчика2500pix

Световой источник632nm red led

Размеры сканера70mm*95mm*168mm

Размеры приёмника67mm*25mm*11mm

Вес сканера172g

Вес приёмника16g

Температура эксплуатации-20°-65°C

Влажность5 - 90%
