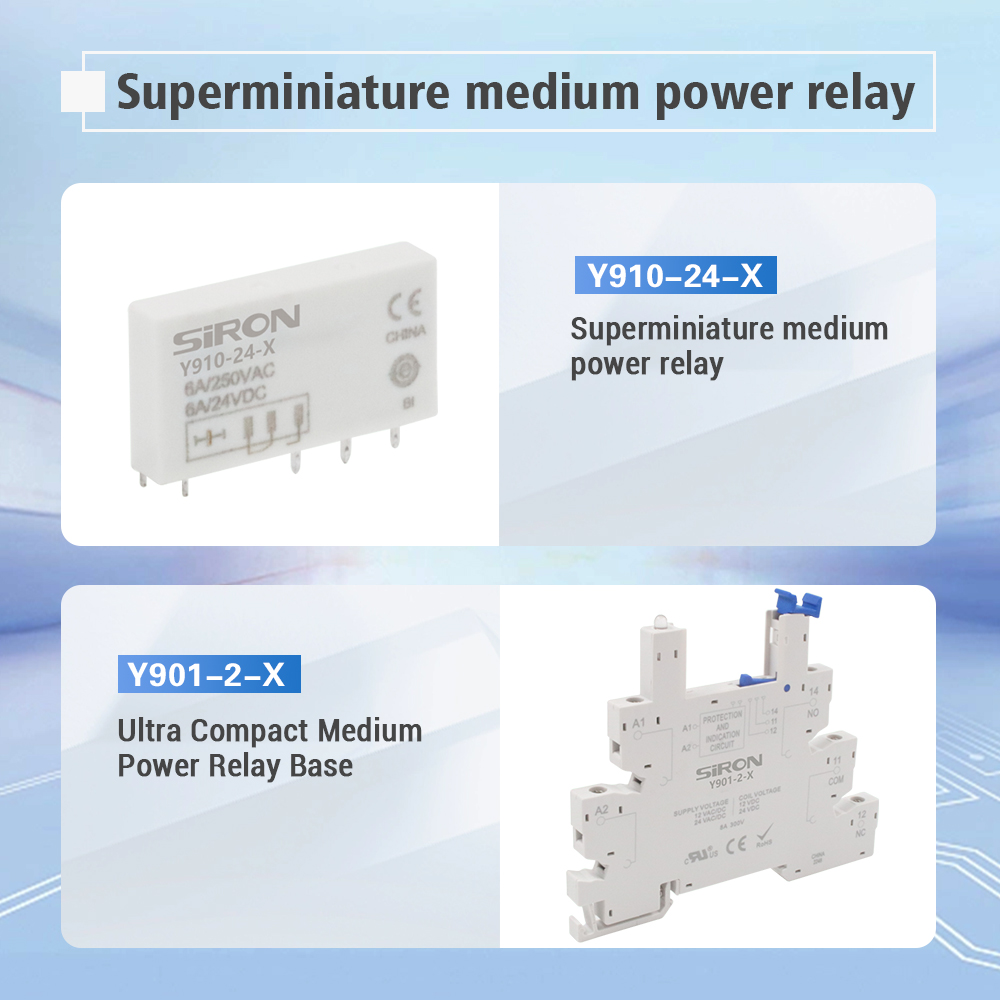

SiRON Y910 Series Push in Screw Type 6A Din Rail Ultra-thin Slim Sealed Relay Module Switch Socket

Артикул: CN-REL-054

Краткое описание

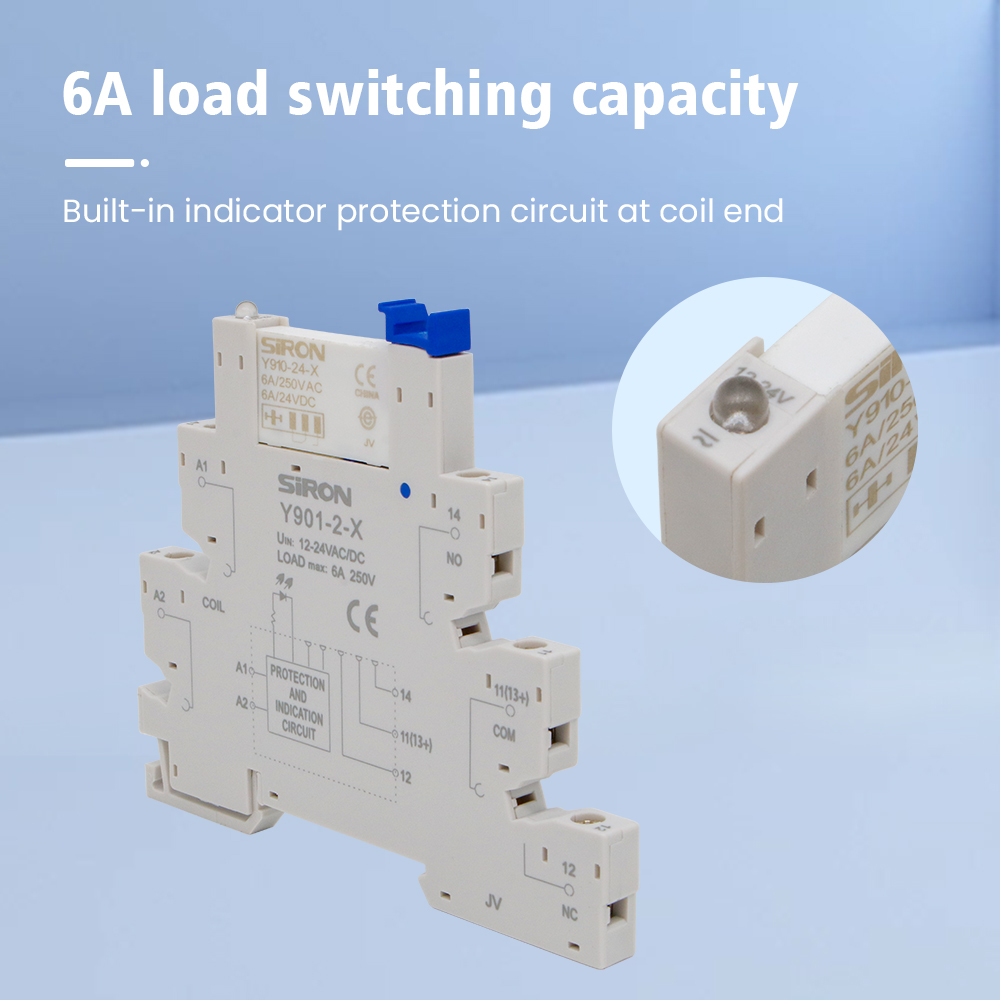

Feature *6A load switching capacity, withstand 80A impact current, 1 group of contacts, mechanical life more than 10 million times; *UL insulation grade: Class F, meeting ROHS requirements; *It can provide products that meet the IEC60335-1 standard and meet the matching use of sockets; *The space distance is greater t…

ColorBlue

Rated Voltage24 V

ColorWhite

MOQ5

Перейти в подробное описание

Характеристики

ColorBlue

Rated Voltage24 V

ColorWhite

MOQ5

CategoryRelays

UnitPiece

*UL insulation gradeClass F, meeting ROHS requirements

NO6A277VAC,COSΦ=1.0

NO6A24VDC,L/R=0

NC6A277VAC,COSΦ=1.0

NC6A24VDC,L/R=0

NO10A277VAC,COSΦ=1.0

NO10A24VDC,L/R=0

On-off time1s on /9s off, normal temperature

NO6A250VAC, resistive load, more than 30,000 times

NO6A24VDC, resistive load, more than 30,000 times

NC6A250VDC, resistive load, more than 10,000 times

NC6A24VDC, resistive load, more than 10,000 times

Coil and contact5000V (1 min) Disconnect contact: 1000V (1 min)

Functionmore than 100m/s2. Strength: 1000m/s2 or more

Contact form1A/1C Group 1 Normally open/Group 1 conversion type

Contact resistanceLess than 100mΩ (under 6VDC1A condition)

Contact materialsSilver tin oxide alloy

Max. switching voltage277VAC/30VDC

Min. switching load10mA24V

Mechanical enduranceMore than 10 million

Electrical enduranceOn-off time: 1s on /9s off, normal temperature. NO: 6A250VAC, resistive load, more than 30,000 times NO: 6A24VDC, resistive load, more than 30,000 times NC: 6A250VDC, resistive load, more than 10,000 times NC: 6A24VDC, resistive load, more than 10,000 times

Insulation resistance1000MΩ(at 500VDC)

Dielectric strengthCoil and contact: 5000V (1 min) Disconnect contact: 1000V (1 min)

vibration resistanceFrequency 10Hz-55Hz, double amplitude 1mm

Shock resistanceFunction: more than 100m/s2. Strength: 1000m/s2 or more

Ambient temperature-40℃to 85℃

Humidity5% to 85% RH

TerminationPCB mounting type

UnitweightAbout 5g

ConstructionSolder proof type or plastic seal type

5 145×(1±10%)

6 210×(1±10%)

9 475×(1±10%)

12 845×(1±10%)

15 1320×(1±10%)

18 1905×(1±10%)

24 3385×(1±10%)

CharacteristicsSet of transformations

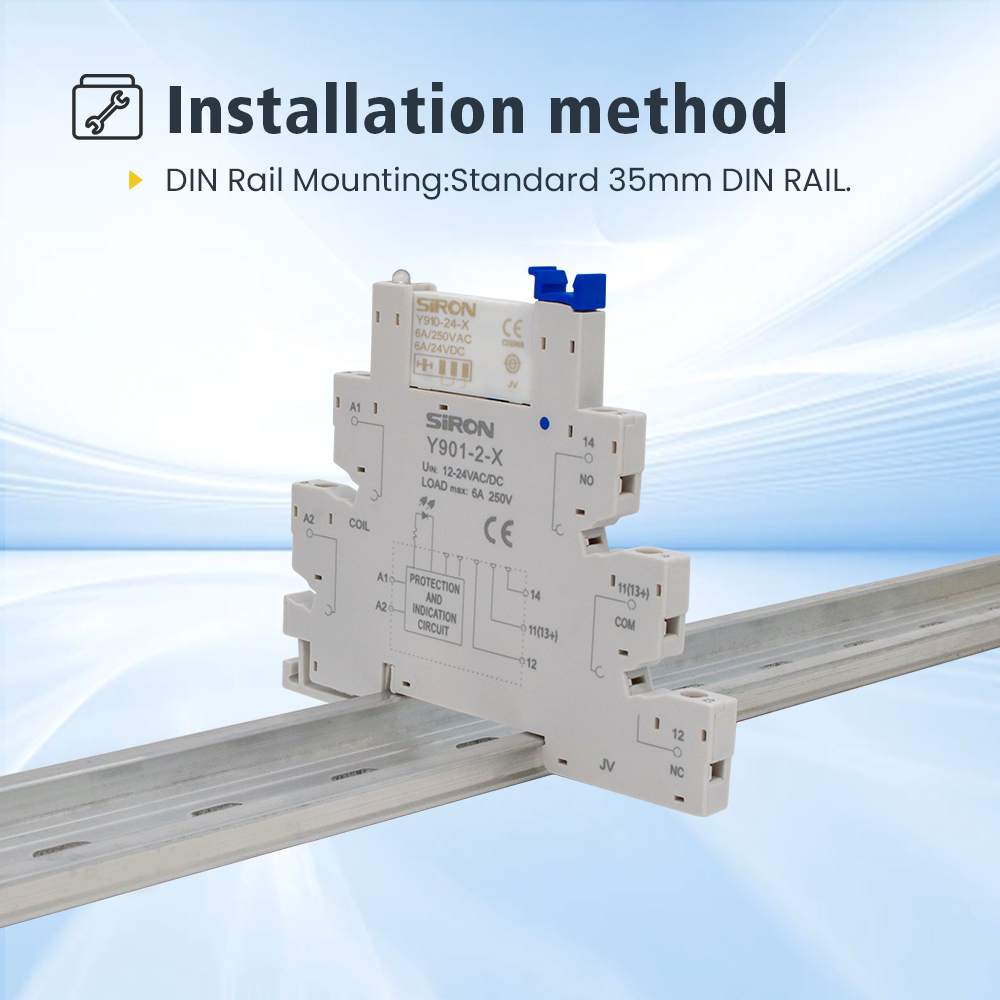

Installation modeDIN-rail mounting

Threadtighteningtorque0.5N.m

ConnectingWireAWG20-14(0.5~2.5mm²)

Overall plugging force1Z≤60N

Use environment-40℃~+85℃

Ток6A

Мощность180W

Мощность240W

Напряжение24V

Напряжение5000V

Напряжение1000V

Напряжение250V

Напряжение300V

Ток80A

Ток1A

Ток10A

Частота10Hz

Частота55Hz

Вес5g

Напряжение277VAC

Напряжение30VDC

Контактная форма1A/1C Group 1 Normally open/Group 1 conversion type

Рабочая температура-40℃to 85℃

Устойчивость к ударуболее 100m/s²

Изоляционное сопротивление1000MΩ

Дизельное напряжение5000V

Дизельное напряжение1000V

Электрическая надежностьболее 10 миллионов

Время работыменьше 8ms

Время отключенияменьше 4ms

УстановкаDIN-rail mounting
