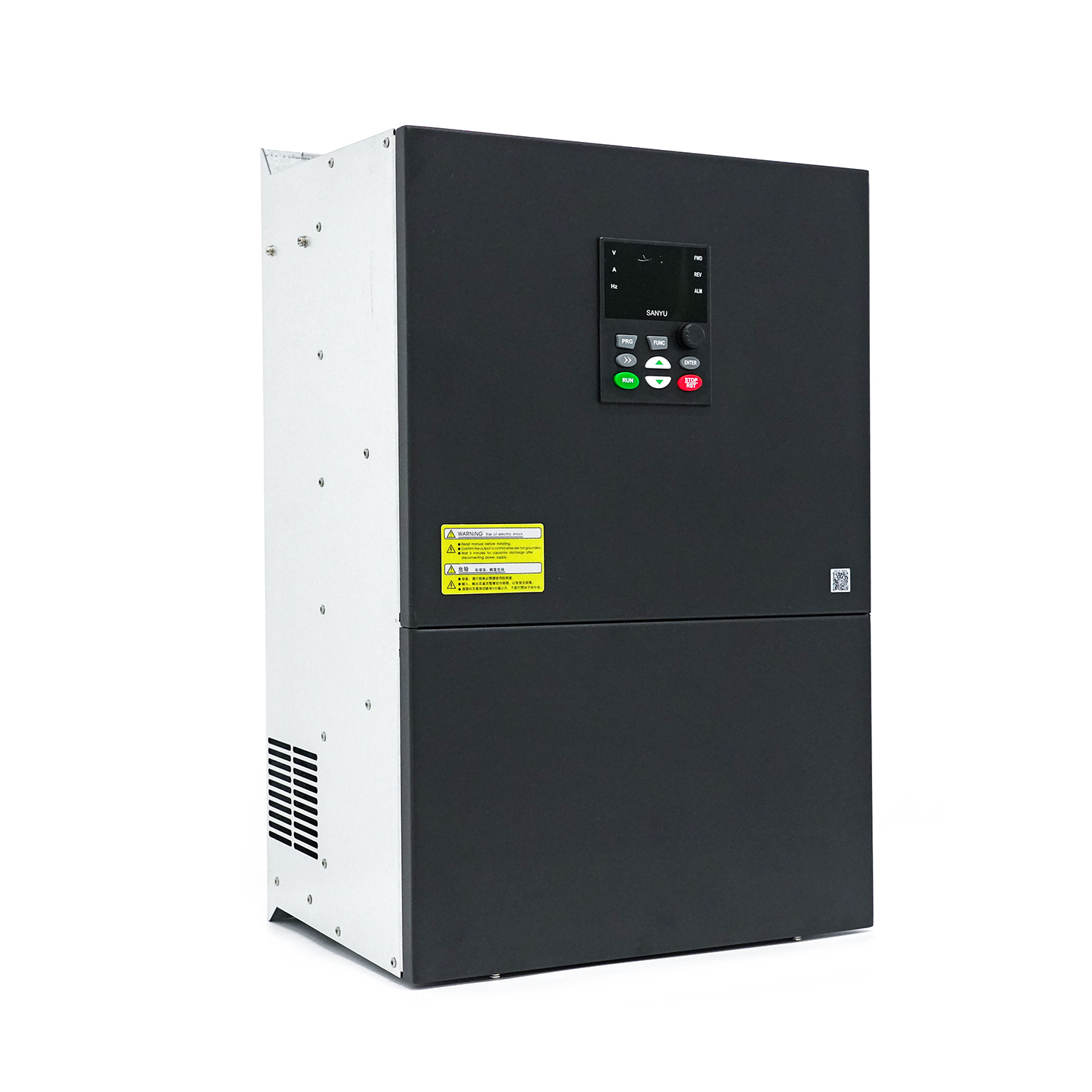

45KW PV Pump Inverter PWM Wave Power Inverters & Converters MPPT VFD for Water Pump

Артикул: CN-IIP-034

Краткое описание

SY3000 Product features: 1.Various series and power are optional: Power range is from 0.4kw to 160kw: adapt to various application scenarios. 2. Built-in PLC, PID, and STO controller: Reduce system cost, enhancing reliability. 3. Short delivery time: The lead time is 7-15 days for small batches. 4. Compact design: Eas…

SpecificationSY3000-045G-4

MOQ1

CategoryVariable Frequency Drivers

UnitSet

Перейти в подробное описание

Характеристики

SpecificationSY3000-045G-4

MOQ1

CategoryVariable Frequency Drivers

UnitSet

1.Various series and power are optionalPower range is from 0.4kw to 160kw: adapt to various application scenarios

2. Built-in PLC, PID, and STO controllerReduce system cost, enhancing reliability

3. Short delivery timeThe lead time is 7-15 days for small batches

4. Compact designEasy to install, saving space and cost

5. Long lifespan of up to 5-8 yearsEnsures long-term stable operation

6. Standard RS485 Modbus communication protocol Achieve remote monitoring easily.

7. All-round protection functions Guarantee fewer faults, low damage, wide adaptability and low after-sales cost

8. 12-hour high-tempreature aging testOptimize the overall stability and reduce after-sale failure rate

9. Competitive priceOriginal factory, no middle men,no commission, maximizes profits for wholesale buyers and distributors

10. After-sales and technical support24//7 online service and senior engineers with over 10 years experience.

11. Solar-Optimized Modes Maximizes PV energy utilization for off-grid/hybrid systems.

12. Grid-Free Reliability Auto-restart after voltage drops and dry run protection.

13. Built-in MPPT Maximizes solar panel efficiency and energy yield.

14. Sensorless Vector Control 150% torque at 0.25 Hz for precise response

2 ChannelsAI1 (0-10V/0-20mA/4-20mA), AI2 (0-10V/0-20mA/4-20mA)

2 ChannelsAO1 (0-10V/0-20mA/4-20mA), AO2 (0-10V/0-20mA/4-20mA)

1. QWhat voltage and frequency does this inverter support?

AIt supports 3-phase 380V/415V 50/60Hz (customizable for 220V single/3-phase)

2. QCan this inverter be used for motor speed regulation of pumps/fans?

AYes, it’s widely applied to pumps, fans, conveyors and other general AC motors

3. QIs the inverter easy to install and operate?

AYes, it comes with clear wiring diagram and English manual, support panel/remote control operation

4. QWhat’s the warranty period of your inverter?

A12 months warranty, lifelong technical support

5. QDoes the inverter save energy?

ASure, it can save 20%-60% energy for variable torque loads like pumps and fans

6. QWhat’s the delivery time for bulk orders?

ASample: 3-5 days

bulk order7-15 working days (depends on quantity)

Rated input voltage1PH220(-15%)~240V(+10%) 3PH220(-15%)-240V(+10%) 3PH380V(-15%)~440V(+10%)

Rated output voltage3PH220(-15%)~240V(+10%) 3PH220(-15%)-240V(+10%) 3PH380V(-15%)~440V(+10%)

Control modeV/F control, flux vector control

Maximum output frequency0-500HZ

Overload capacity150% rated current one minute

CommunicationRS485 communication (support MODBUS protocol bus)

Ambient Temp.-10-50℃,(At40~50℃,please use it by derating)

braking3PH 380V 0.75-22KW

Cooling MethodForced Air Cooling

Analog Input2 Channels: AI1 (0-10V/0-20mA/4-20mA), AI2 (0-10V/0-20mA/4-20mA)

Analog Output 2 Channels: AO1 (0-10V/0-20mA/4-20mA), AO2 (0-10V/0-20mA/4-20mA)

Electricity consumptionReduce at least 30%

Power Range 0.4-160KW

Max Power Point (50.0%~100.0%)High-efficiency MPPT tracking for solar panels

Wide Voltage & Frequency Adaptation0.0%~200.0% MPPT voltage range and precise frequency matching, adapting to solar irradiance fluctuations stably

MPPT Frequency MatchingPrecise frequency adjustment for solar output

Напряжение240V

Напряжение380V

Напряжение440V

Напряжение10V

Напряжение415V

Напряжение220V

Частота0.25 Hz

Частота60Hz

Мощность45KW

Мощность0.4-160KW

Максимальная выходная частота500 Hz

Рабочая температура-10-50℃

Гарантийный срок12 месяцев

Эффективность энергопотребления30%
