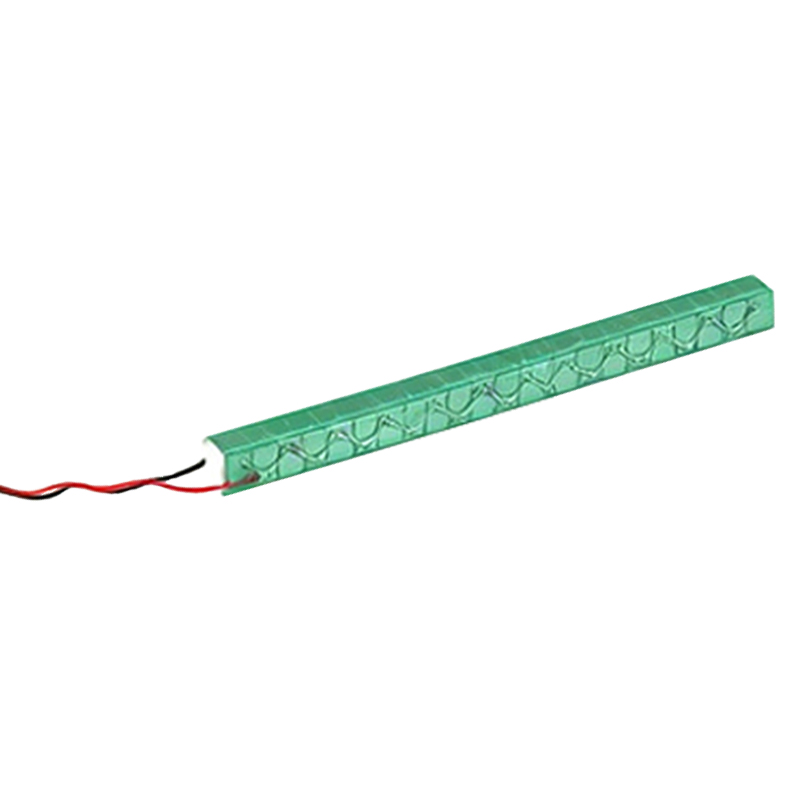

33μm Displacement Stack Multilayer Piezo Actuators High-speed Switching for Actuators 31mm-long Piezoelectric Ceramic Stack
Артикул: CN-ELK-008
Краткое описание
Q： What's the MOQ for product? A： MOQ for standard products：1pcs. MOQ for customized products：5pcs（ Excluding special custom-made items ）. Q： What is the delivery lead time? A： standard products： 7 days（ Inventory） Made to order： 29 days customized products：35 days Q： Shipping Logistics. A： Supported shipping option…
Specification33μm Displacement-3*3*31mm
MOQ1
CategoryElectrical Ceramics
UnitSet
Характеристики
Specification33μm Displacement-3*3*31mm
MOQ1
CategoryElectrical Ceramics
UnitSet

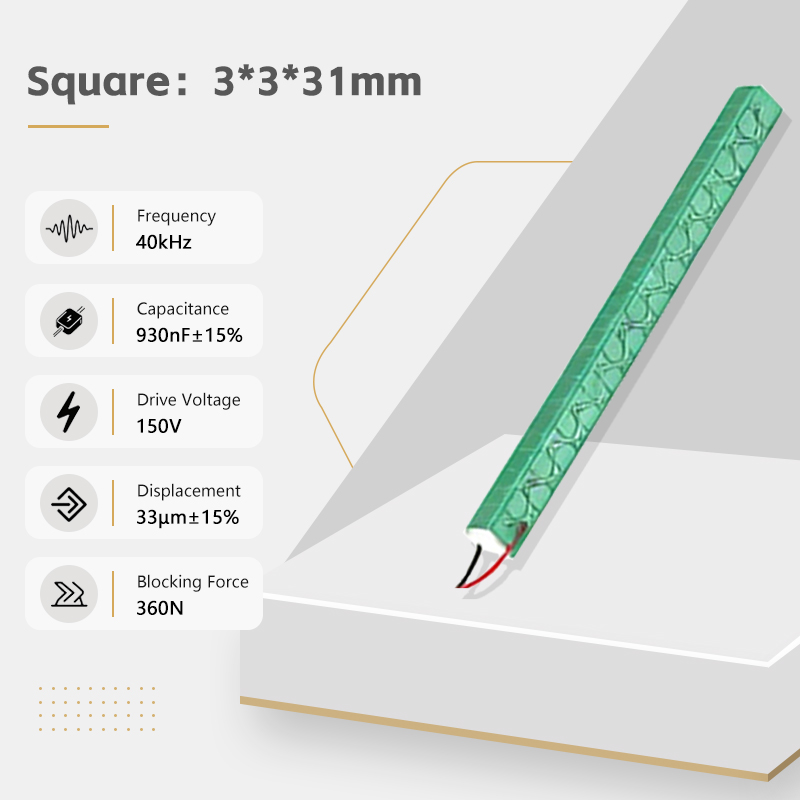

modelHCSR33T31
Drive Voltage150V
Dimensions3*3*31mm
Capacitance930nF±15%
Resonant Frequency40Khz
Displacement33um±15%
Blocking Force360N
Напряжение150 V
Размеры3*3*31 mm
Емкость930 nF±15%
Резонансная частота40 kHz
Смещение33 um±15%
Заблокирующая сила360 N
Напряжение150 V
Размеры3*3*31 mm
Емкость930 nF±15%
Резонансная частота40 kHz
Смещение33 um±15%
Заблокирующая сила360 N
